Hardware Overview
Hardware specifications and timing capabilities of the WOLF ONE node.
Quick Specifications
| Category | Key Specs |
|---|---|
| Ports | 6 camera, 2 mono, 1 input, 2 network, 1 USB Type-C, 1 USB Type-A, 1 power |
| LEDs | 10 RGB indicators (status + state) |
| Power | 24V DC or 5V USB |
| Timing | ±5µs trigger accuracy |
| Network | HowlNET over RJ45, 100m segments |
| Calibration | 6 user configurable channels with color coding |
| Storage | Onboard memory for effects & settings |
| Control | Box buttons, TRS input, Leash app |
Visual Reference
Detailed Information
For complete port specifications, pinouts, and wiring: Port Reference
Front Panel

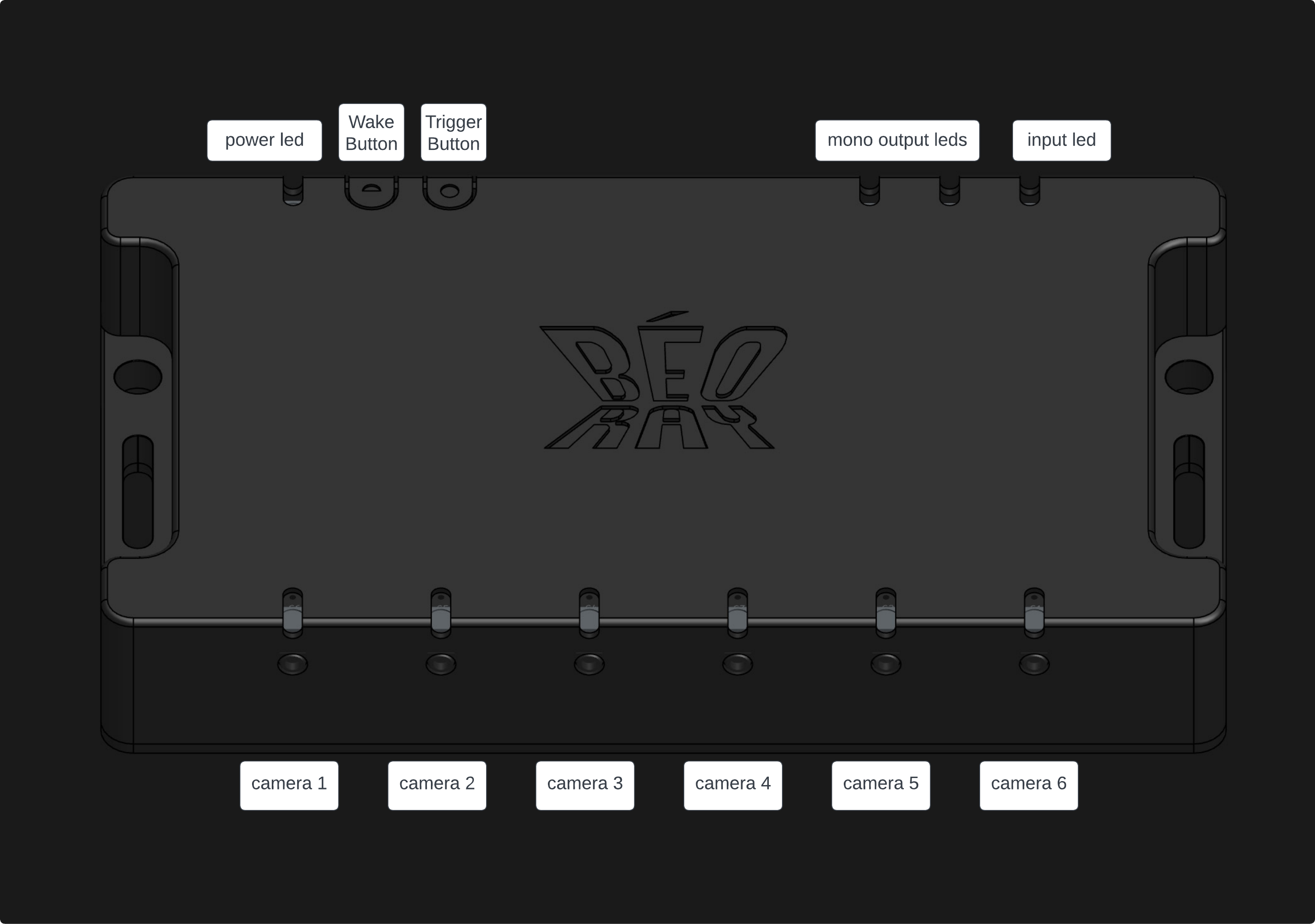

- 6× Camera Ports - Camera sync cable connections with RGB LEDs
-723c7e3d065e5009a42aa8777851cf88.png)

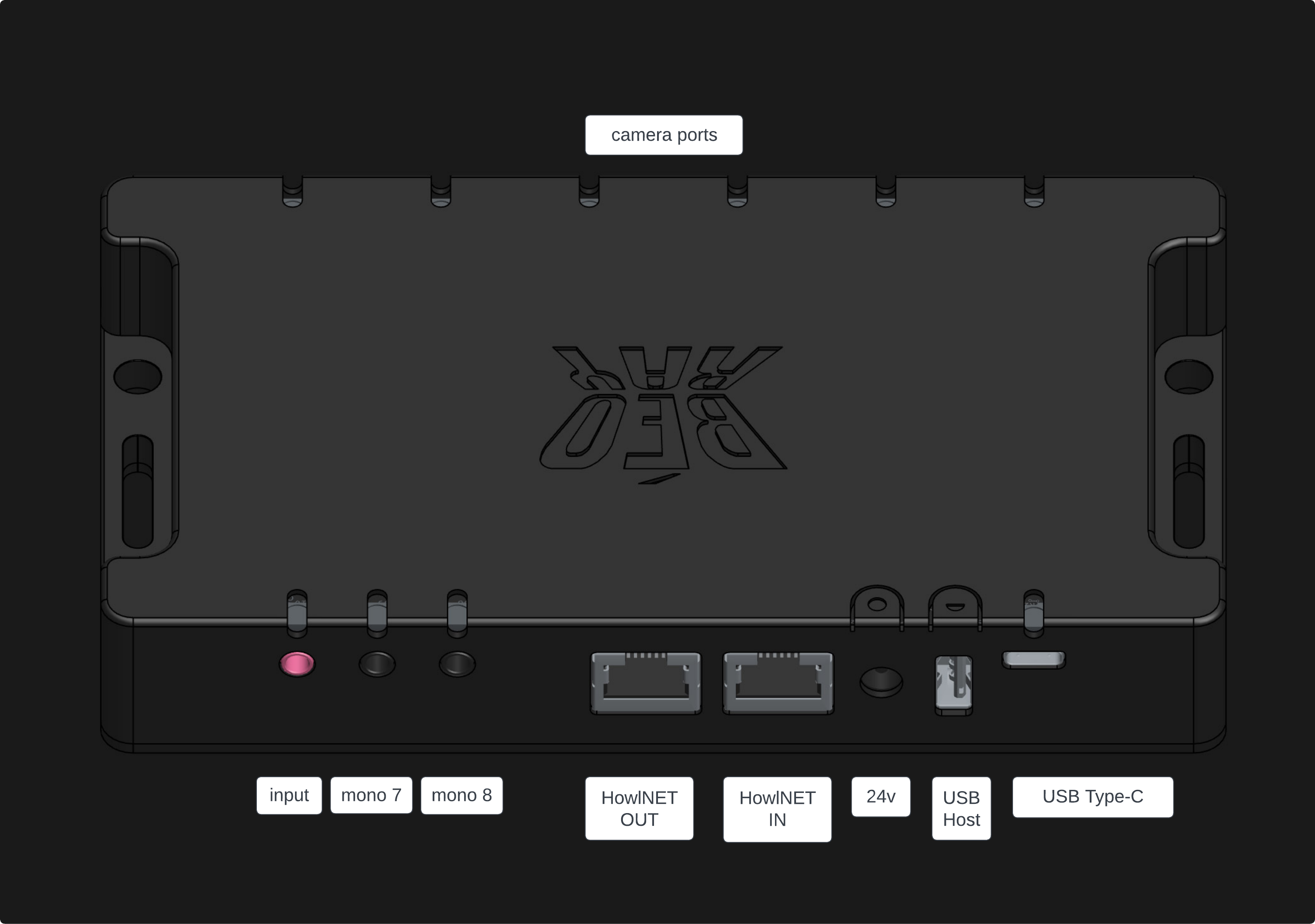

Back Panel
- 1× TRS Input - External trigger (pink LED)
- 2× Mono Ports - Strobe/peripheral triggers with RGB LEDs
- 2× HowlNET Ports - Network daisy-chain (IN/OUT)
- 1× DC Power - 24V input
- 1× USB Type-A - Host
- 1× USB Type-C - Computer & power
- 2× Box Buttons - Wake and Trigger controls available on top face
-bfffc0937a25920d2d0d4404747ffc87.png)
Power Options
- USB Type-C (5V): Computer or USB adapter
- 24V DC: Powers entire daisy-chain through HowlNet (RJ45)
Power Consumption
| Parameter | Value |
|---|---|
| Node Power Consumption (Idle) | 1W per node |
| Node Power Consumption (Peak) | 1.6W per node |
| Node Power Consumption (Max) | 2W per node |
| Recommended Bus Power | 24V @ 2.5A (60W total) |
| Practical Limit | ~20 nodes per 2.5A supply |
Power Distribution
| Configuration | Power Source |
|---|---|
| Single node (USB) | USB Type-C provides power |
| Single node (24V) | DC adapter provides power |
| Multi-node chain | 24V distributed via HowlNET |
Timing & Performance
| Specification | Value | Description |
|---|---|---|
| Trigger Accuracy | ±5µs | Precision across all nodes |
| Network Latency | 260µs ±5µs | HowlNET message delay |
For event timing specifications, see Effect Overview.
LED Status System
WOLF ONE features 10 RGB LEDs for real-time status feedback:
Port LEDs (9×)
| Port Type | LEDs | Color Meaning |
|---|---|---|
| Camera Ports | 6 | Calibration channel (RGB) |
| Mono Ports | 2 | Calibration channel (RGB) |
| TRS Input | 1 | Status (RGB) |
| USB Type-C | 1 | Power Mode (RGB) |
Calibration Colors:
- A: Blue | B: Magenta | C: Yellow | D: Cyan | E: Purple | F: Orange | SP: White
- Off: Disabled
TRS Input:
- Green: Connected
- Off: Disconnected
Power LED Colors
- White: 24V Bus Power
- Green: USB Type-C Power
- Off: No Power
Environmental Specifications
| Parameter | Range | Notes |
|---|---|---|
| Operating Temp | 0°C to 40°C (32°F to 104°F) | Active use |
| Humidity | 20% to 80% RH | Non-condensing |
| Ventilation | Passive cooling | No fans required |
| Location | Indoor use only | Protected environment |
Electrical Specifications
Output Characteristics
| Parameter | Camera/Mono Ports | Notes |
|---|---|---|
| Type | Open-drain (ground-switching) | Compatible with most cameras |
| Max Voltage | 50V | Safe for all camera electronics |
| Max Current | 50mA per pin | Sufficient for signaling |
| Switching Speed | Sub-microsecond | Precise timing control |
Input Characteristics
| Parameter | TRS Input | Notes |
|---|---|---|
| Type | Digital input | External trigger support |
| Voltage Range | 0-3.3v tolerant | 3.3v is generated by WOLF node |
Memory & Storage
WOLF ONE Memory - Onboard persistent storage
- Stores: Effects, calibration data, settings
- Capacity: 32GB
- Persistence: Data retained when powered off
- Management: Via Leash app
Patent
U.S. Patent Numbers 11669483, 11210258
Next Steps
- Leash App →
- Wiring Diagrams - Connection examples and cable specs
Having issues? See Troubleshooting
